Even the simplest drilling task can derail a project if the hole is off by a hair. I learned that the hard way in busy shops where small errors compound into big fixes. These quick, low-cost fixes turn scrap wood and a few minutes of work into reliable guides that save time and frustration. Below are three practical DIY drilling hacks that improve angle, placement, and depth every time.

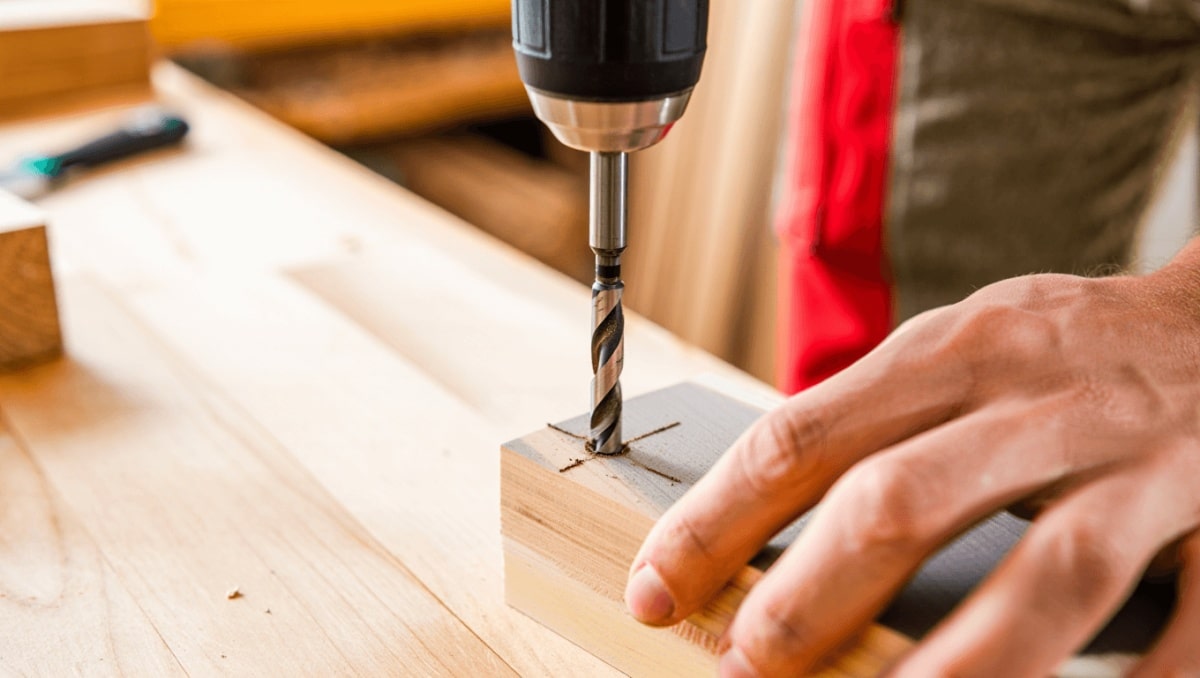

Make a tiny drill guide from scrap wood for repeatable accuracy
When you need a straight, repeatable hole, a small block of wood with a predrilled guide turns human wobble into machine-like consistency. You can make one with a screwdriver, a handheld drill, or a drill press.
Michaels holiday finds under $25: 20 new gifts that look like $50
Target wall-mounted find frees up countertop space: timeless style for small kitchens
- Choose the right scrap. Use a piece of wood big enough to hold, but small enough to fit where you’ll be drilling.
- Drill the guide hole. Bore a hole through the block with the bit you plan to use. If you have a drill press, it will give a truer hole.
- Match the bit size. A guide made for a 1/4-inch bit won’t center a 1/16-inch bit reliably. Make one guide per common bit size.
- Label the block so you know its diameter and intended use at a glance.
This jig acts like a short sleeve for your drill bit. Slip it over the bit and press the block to the workpiece. The block’s hole centers the bit and keeps the angle steady as you start the pilot hole.
Quick assembly steps
- Cut a 2×4 scrap to a comfortable length.
- Clamp it or hold it on a flat surface.
- Drill a clean hole with the target bit.
- Test the fit and mark the block with the bit size.
Always test the guide on a scrap piece first. A few practice holes confirm the block’s accuracy before you touch the actual project.
Turn a straight guide into an angled drilling jig
Need a hole at a particular angle? You don’t need special fixtures. Start with a straight guide and convert it to match your angle.
- First, drill the guide hole as if making a 90-degree block.
- Clamp the block and cut the bottom face at the desired angle.
- The bored hole now points at the new angle when the block sits flat.
- Mark the block’s face with the angle degree so you can repeat it later.
This technique works because the drilled hole keeps its orientation relative to the block’s faces. By changing the face that sits against the material, you change the drilling angle.
When angled holes matter
- Attaching tapered legs or braces.
- Aligning hardware that requires a precise tilt.
- Making clean countersunk or angled pilot holes that hide fasteners.
Use a bevel gauge or digital angle finder to confirm the cut. Small errors in the guide mean large errors in the finished part. If you have a drill press, set the table angle and bore the block at the exact tilt for best results.
Control hole depth with an easy stop block or collar
Depth control prevents drilling through a surface or leaving an exposed hole. A simple stop on the bit sets a hard limit to how deep you drill.
- Measure how far the bit should extend beyond the workpiece.
- Slide a block with a matching hole onto the bit and set it to that dimension.
- Tighten with a screw, hose clamp, or small bolt so the block won’t shift.
- Drill until the block hits the surface, then stop.
Commercial depth stops exist, but a shop-made block often works just as well. I mark the block with the finish depth so the same setting can be reused.
Extending holes started with a guide
Sometimes the guide prevents the bit from reaching the full depth you need. In those cases:
- Use the guide to start the hole and ensure perfect alignment.
- Remove the guide once the pilot hole is under way.
- Replace the block with a depth stop on the bit if more depth is required.
That sequence preserves accuracy while allowing the final depth to be reached safely. Always clamp or secure the workpiece before drilling. Wear eye protection and keep hands clear of the bit.
