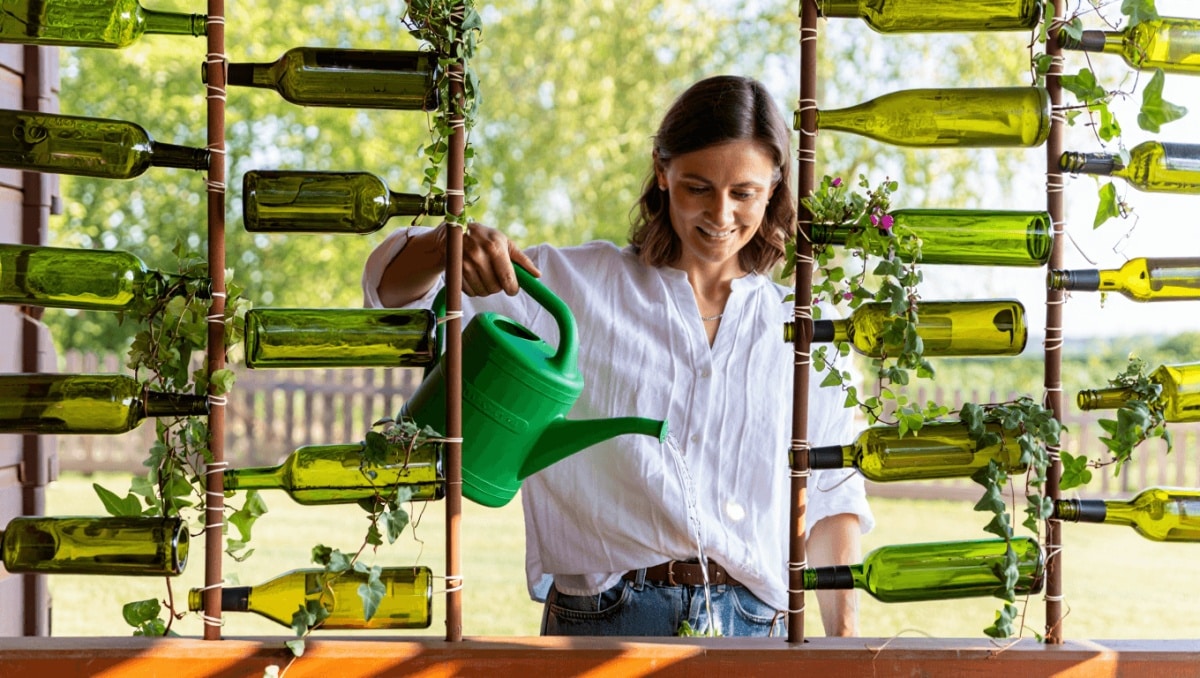

Glass bottle privacy screen: upcycle bottles into a stunning DIY

Show summary Hide summary

• Plan your upcycled glass bottle privacy screen
• How to cut and prepare bottles safely
• Construct the frame and assemble the bottle wall
• Creative finishes and design choices to boost privacy
• Safety tips, maintenance, and longevity

Transforming a pile of empty wine and liquor bottles into a beautiful privacy screen is an easy, eco-friendly way to add character to a yard or porch. With a few basic materials and some patience, you can turn discarded glass into a colorful barrier that filters sightlines while catching the light. Below you’ll find planning tips, a clear build process, and creative ideas to make a one-of-a-kind outdoor divider.

Plan your upcycled glass bottle privacy screen

Before you cut or drill glass, decide where the screen will live and how much privacy you want. Location dictates size, support needs, and whether the structure needs to be permanent.

• Measure the span and height you need. Typical porch infill uses only a top and bottom board.
• Choose between a framed panel or a freestanding post-mounted wall. Frames can sit in the ground or hang from an existing rail.
• Estimate bottle quantity. Tightly packed rows need dozens; a looser, decorative panel needs fewer bottles.

Gather tools and materials before starting. You will need wood for the frame, lengths of rebar or stout rods for the bottle stacks, and a diamond hole saw bit sized to fit your bars. Use a 3/4″ or 5/8″ diamond bit to make clean, safe holes in bottle bases.

• Wood boards (top and bottom, or four for a full rectangle)
• Steel rebar or metal rods, cut to frame depth
• Diamond hole saw bit (3/4″ or 5/8″) and drill
• Rubber washers or grommets for spacing bottles
• Optional: translucent spray paint, string lights, wooden beads

How to cut and prepare bottles safely

Drilling glass requires care and steady technique. Rushing this step risks cracking bottles and creating dangerous shards.

1. Work outdoors or in a well-ventilated area and wear eye protection and gloves.
2. Clamp the bottle gently or rest it in a padded cradle so it won’t roll.
3. Start the hole at an angle to create a small pilot notch, then straighten the drill as the cut progresses.
4. Keep the glass cool and lubricated with water. Spray a constant trickle on the drilling area.
5. Proceed slowly; let the diamond bit do the work. Do not apply heavy pressure.
6. After drilling, rinse bottles thoroughly to remove glass dust.

Tip: If you’re new to drilling glass, practice on a spare bottle first. Clean the work area and dispose of glass dust safely.

Construct the frame and assemble the bottle wall

Frame construction depends on placement and permanence. The simplest version uses two horizontal boards with rebar threaded through holes.

1. Cut top and bottom boards to the chosen width. Mark a straight line where rebar holes will go.
2. Drill matching holes through the top and bottom pieces so rods can pass cleanly.
3. Drive the frame posts into the ground or fasten the frame to an existing structure.
4. Slide each drilled bottle onto a rebar rod, adding a rubber washer between bottles for spacing and cushioning.
5. Fit the rods into the pre-drilled frame holes so each column of bottles stands vertical.
6. Secure the ends of the rods with caps or bend them slightly and anchor them so they don’t slide out.

Alternative supports: Long wood dowels may work if coated and strong enough. For a removable display, use threaded rods with nuts to lock bottles in place.

Creative finishes and design choices to boost privacy

The visual impact of a bottle screen comes from color, pattern, and extras you add. Thoughtful design can increase both privacy and curb appeal.

• Colored glass: Select green, brown, or blue bottles to make the barrier more opaque.
• Painted clear bottles: Apply translucent spray paint to clear glass to create soft color while keeping light transmission.
• Orientation: Mix upside-down and right-side-up bottles for texture. Consistent direction gives a cleaner look.
• Fillers: Use smaller liquor bottles or wooden beads to close gaps near the frame edge.
• Lighting: Weave outdoor string lights through the bottles for evening ambiance.
• Labels: Keep labels on for a vintage, eclectic vibe or remove them for a polished appearance.

Safety tips, maintenance, and longevity

Plan for weather and wear. Proper anchoring and periodic checks will keep the screen safe and attractive.

• Secure the frame against wind. Anchor posts or add weight to the base.
• Inspect washers and rod fittings yearly and tighten if needed.
• Replace cracked bottles immediately. Glass weakened by a small nick can fail later.
• To clean, remove a column of bottles or hose the whole screen gently. Avoid harsh impacts.

Note: Use thick-walled bottles when possible. Thinner glass is more prone to breakage during drilling and with temperature shifts.
